Made in Australia

Roof Truss Quality Fastner

• Tired of wasting time and money on second rate of fastners
• Do not risk your investment and safely by using second rate of fastners
• Use the Right Fastners that have tested, proven and recommended

All Penfast® fasteners are designed to do their particular job efficiently than conventional fasteners, therefore you will achieve a superior finish on the job by using Penfast® fasteners.

With constant research and development,Penfast® are pacesetters in the design and manufacture of fasteners for the commercial and residential building industry.

enfast® fasteners are manufactured to a high standard of quality and subject to strict inspection and test procedures. The Fastener ranges is produced in a variety of materials and finished which all surpass of requirements set by the Australian Standard AS3566. This ensures maximum endurance over a wide range of climatic and environmental condition.

When you are using Penfast® fasteners, you are using high quality fasteners available.

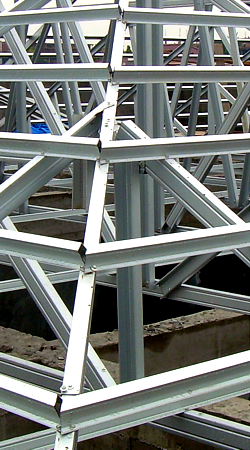

For every type of application, Penfast has the appropriate fastener solution. So as the application of tastening the light gauge steel roof structure, so called "Light Metal Roof Truss" that has been widely used.

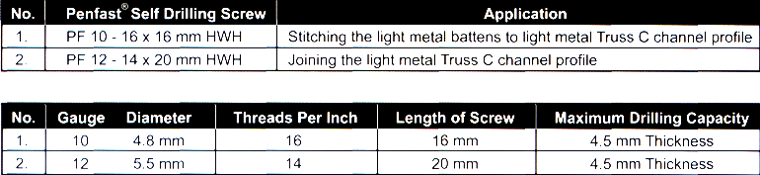

For this particular application, Penfast® has specially developed - two diffrent gauge of drill screws, special designed drill point, and threads that full up to the bottom of the flange - Indent Hexagon Washer Head Self Drilling Screw - no seal, in electro white zinc plated and clear chromate finishes for joining light gauge steel sheeting.

Penfast Self Drilling Screws Key Feature

• Cold Forged Difference: Penfast® self -drilling screws are cold forged drill screws,yielding stronger and more consistent drill point versus conventional milled drill point


• Patented Drill Point: Penfast® patented twist drill point forming process distributes a thin web across the chisel point and sharp convex cutting edges to improve drilling perfomance with less effort. This provides faster start and fast material engagement, virtually eliminate slip damage and minimizes the chances of binding or stall out


• Unique Point to Thread: This unique point to thread designed extrudes the metal chips preventing strip out, maximizes pullout and minimizes back out perfomance


• Full Tread: Penfast® drill screws thread has smartly designed full up to the bottom of the flange and no seal to provide stronger grip and very firm material joining engagement

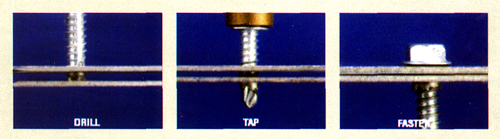

• The Art of Heat Treatment: Penfast® drill screws in house maintaining tight controls over the process of the heat treatment releasing hydrogen to prevent drill screw combines three operations - drilling - tapping - fastening - into one action


• Eliminate pre-drilling or hole punching and tapping process then fastening. Safe time and money




• Corrosion Resistance: For this particular application - General Internal Usage -available in 5µ (micron) thickness electro white zinc plated and clear chromate finishes which surpass the requirements set by Australian Standard AS 3566.2 - 2002 "Requirements for Zinc Coated Fasteners"

A standard screw gun with a depth sensitive nosepiece should be used. For optimal fastener perfomance, the screw gun should be a minimum of 4 amps and have a RPM range of 0 -2000, Adjust the screw gun nosepiece to properly seat the fastener. New magnetic sockets must be correctly set before use. Remove chip built-up as needed. The fastener is fully seated when the head is flush with the work surface. Over driving may result in torsion failure of the fastener or strip out of the substrate. The fastener must penetrate beyond the metal structure a minimum of three pitches of thread

Warranty

Penfast® fastener are made to exacting high standards of quality and are subjected to strict inspection and testing procedures. Penfast® is so confident that can guarantee the high quality and perfomance of its fasteners that is has backed up with the warranty. The warranty applies to this spesific fastener that in electro white zinc plated and clear chromate finishes for two years of warranty period

lt guarantees against the loss of structural integrity due to effect of corrosion of metallurgical defects. Penfast® will undertake to replace any defective screws at no cost. The Penfast® warranty would guarantee you peace of mind against screw damage, roof truss fastening failure and expensive callbacks
